4.3-10 Male straight connector soldering type for 1-1/4 cable Tri-alloy plating PIM -160dBc
Interface
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-3GHz |
| 3 | VSWR | (DC-3GHz)≤1.12 |
| 4 | Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | ≥5000MΩ |
| 6 | Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
| 7 | Insert Loss | ≤0.0.05dB |
| 8 | PIM ( @2-tonex20w) | ≤-160dBC |
| | | |
Mechanical
| Durability | Mating cycles ≥500 |
| | |
Material and plating
| | Description | Material | Plating |
| 1 | Body | Brass | Tri-alloy |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Phosphor bronze | Ag |
| 4 | Gasket | Silicone rubber | - |
| 5 | Other | Brass | Ni |
| | | | |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
| 2 | Watertightness | IP67 |
| 3 | Rosh-compliance | Full ROHS compliance |
| 4 | Salt spraying test | 96h |
| | | |
About Us
We are a professional manufacturer for RF coaxial connector, RF coaxial adapters, RF coaxial cable assemblies in China. The products are used by China Mobile, China Telecom, HUAWEI, Amphenol etc.
Customers from India, Germany, France, USA, Italy, S.Africa, Australia etc. who has established long term cooperation with us because of premium quality products, effective service and reasonable price.
Also one-stop-service is provided to cusutomer with feeder cable, splitter, coupler and other IBS products.
| Address | Xinfeng Economic Development Zone, Xinfeng Town, Dantu District |
| City | Zhenjiang |
| Province | Jiangsu |
| Post code | 212100 |
| | |
It's nearby Nanjing, Changzhou, Wuxi and Suzhou. 2 and half hours to Shanghai by CRH.
Products categories:
| RF connectors and adaptors (4.3-10, 7/16 DIN, N type, F Type, PAL, BNC, TNC, RCA, SMA, SMB, MCX, MMCX etc) |
| Feeder Cables (Brand: Hansheng,Hengxing,Kingsignal etc, Type: 1/2", 1/2"SF, 7/8", RG59, RG6, RG174, LMR400 etc.) |
| IBS products (splitter,coupler, combiner, 3M tape, cable clamp, Ground copper bar, Grounding kits, electric cabinet, Heat Shrink Sleeve etc.) |
| Attenuators |
| Lightening Arrestors |
| RF Cable Assebmlies |
| Antennas (ZTE, MOBI etc.) |
| Center Pin ( inner conductor ) |
| |
|
|

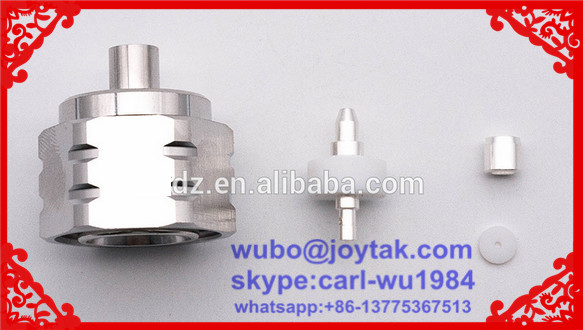

4.3-10 Male straight connector soldering type for 1-1/4 cable Tri-alloy plating PIM -160dBc Images
|
